Water treatment refers to the process of purifying natural water sources such as rivers, lakes, and groundwater to make the water safe for human consumption and daily use. This process involves steps like filtration, disinfection, and chemical treatment to remove impurities, pathogens, and harmful substances, resulting in clean, potable water.
Types of Water Treatment Filtration : Filtration is a physical or mechanical process used to separate solid particles from a liquid or gas by passing the mixture through a filter or porous material that allows only the fluid (liquid or gas) to pass through, while trapping the solid particles.
Sand Filters :Water passes through layers of sand. Removes dirt, algae, and other particles. Common in municipal water treatment plants.
Activated Carbon Filters : Removes chlorine, organic chemicals, and bad tastes or odours.Used in home water filters and purification units.
Dual Media or Multimedia Filters :Combine layers like gravel, sand, and anthracite coal.Designed to filter water more efficiently and deeply.
Reverse osmosis (RO) : Reverse osmosis (RO) is a water purification process that uses a semi-permeable membrane to separate water molecules from dissolved contaminants, suspended particles, and biological substances like bacteria.
Water is life & we cannot survive without it. However, naturally available water in rivers, lakes, wells, bore wells etc. may not be suitable for direct use. The feed or raw water has different characteristics & it needs different solutions to purify the same. We understand this & hence we provide solutions to our customers which are specific to them. Water contains floating, suspended, colloidal & dissolved particles which need to be removed from the water before it can be used for any particular application. Depending upon the end use of the water, we manufacture & supply the following...

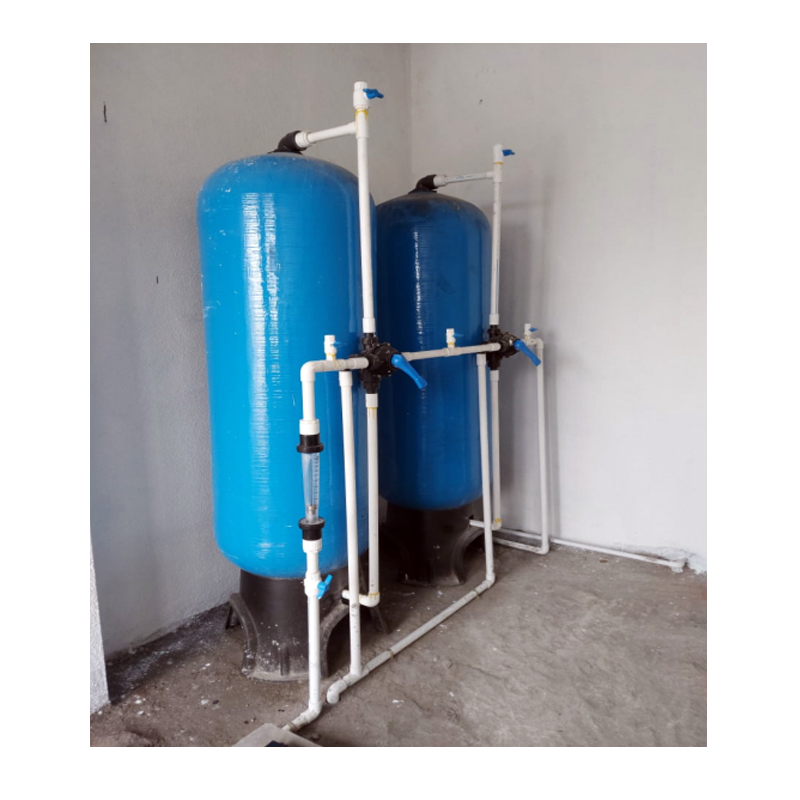

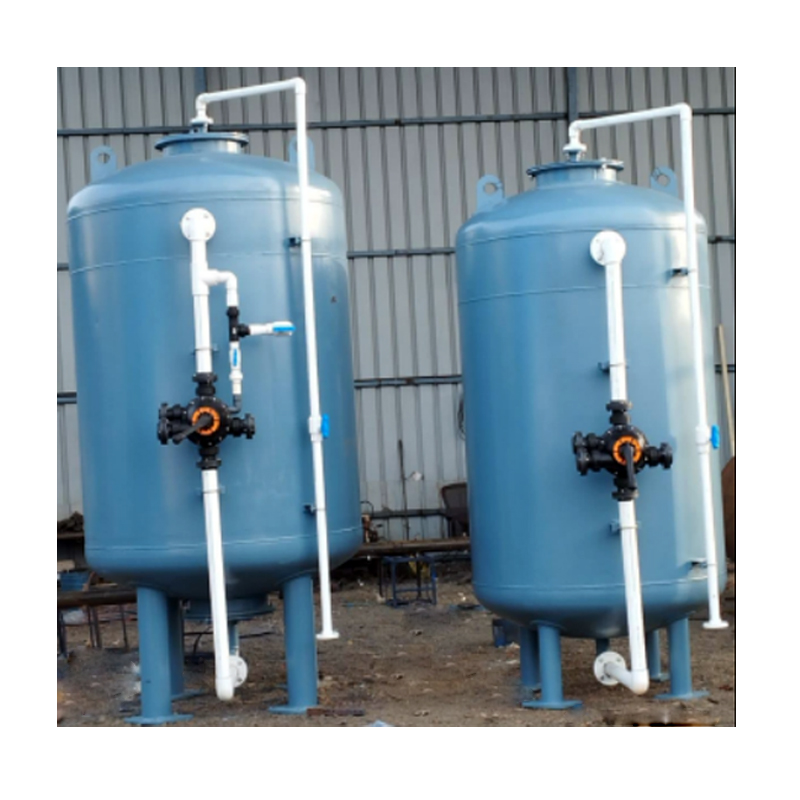

Media Filters (DMF & PSF) are used to remove suspended & floating particles from the water. Media filters act as pre-treatment for many advanced water treatment technologies such as Ultra Filtration, Reverse Osmosis or as post-treatment for Sewage & Effluent treatment. Sand, gravels, pebbles & anthracite etc. are used to trap the suspended solids from the water.
Activated Carbon Filters (ACF) are used to remove odour, colour, free chlorine etc. & improve the taste of the water. It is usually employed after the media filter & used for water & wastewater treatment applications. Activated carbon of suitable Iodine Value as per application is selected as the filter media.

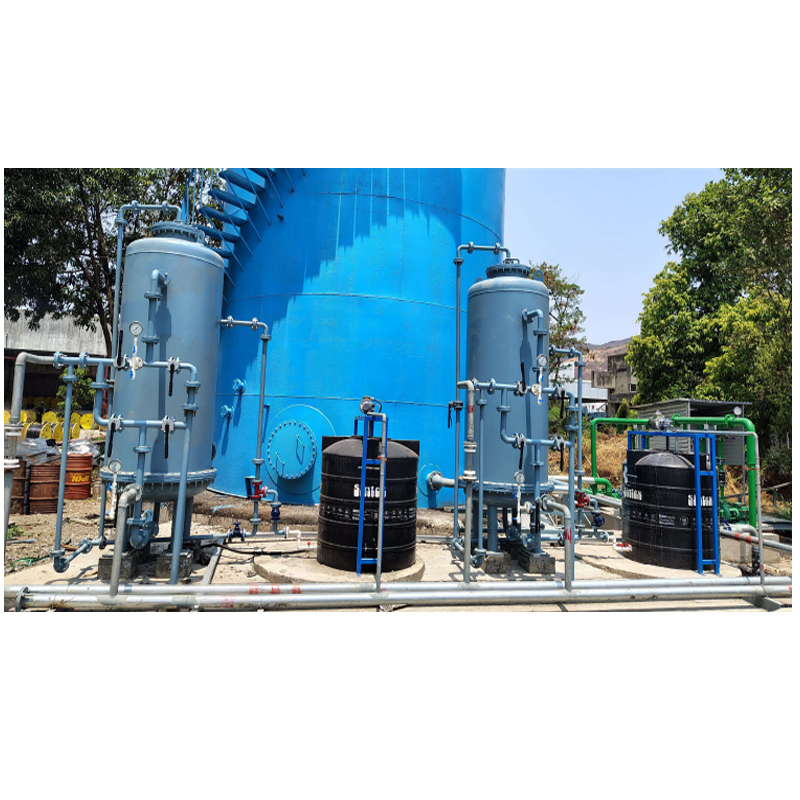

Softeners are used to remove the calcium & magnesium hardness from the water. Calcium & Magnesium salts are present in all water resources & must be removed in order to make the water suitable for end use. Softeners replace calcium & magnesium ions with sodium ions thereby removing the hardness from water. Softeners are often used in industries, hospitals, residential complexes to make the water usable. Softeners are required for cooling towers, boilers, chillers, textile dyeing, hospitals & pharma applications. We manufacture & supply above Filters & Softeners in MS (Mild Steel) coated with epoxy paint, FRP (Fiber Reinforced Plastic) lining or rubber lining, Stainless Steel or FRP vessels as required by the application.
Water contains dissolved solids which impart various characteristics to the water. These dissolved solids are salts of various ions like Sodium, Magnesium, Calcium, Chlorides, Sulphates etc. In many applications, these salts should either be completely removed or reduced to make the water usable. Reverse Osmosis is used to remove these salts from the raw water using semi-permeable membranes called Reverse Osmosis Membranes. Water is pressurized again, these membranes where water passes through the membrane to form permeate stream & salts are reacted to form another stream concentrated with salts called a reject stream. We manufacture & supply high-quality Reverse Osmosis plants as per our client's needs suitable to their applications.
Deionization (DM) plants are used to remove dissolved salts and minerals from water, producing high-purity water. They operate through ion exchange processes, where resin beds replace positive and negative ions with hydrogen and hydroxide ions.

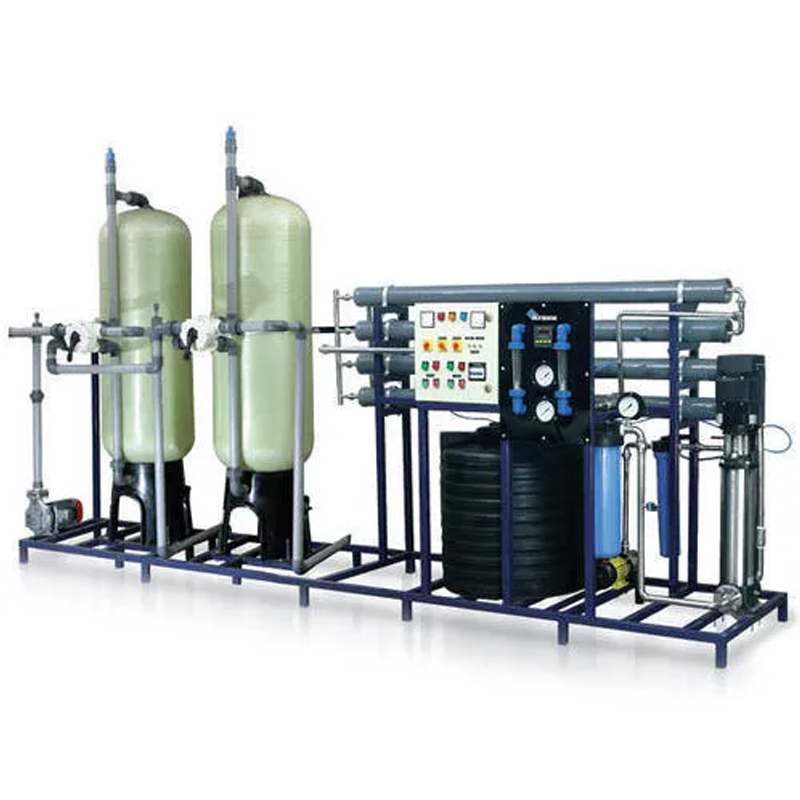

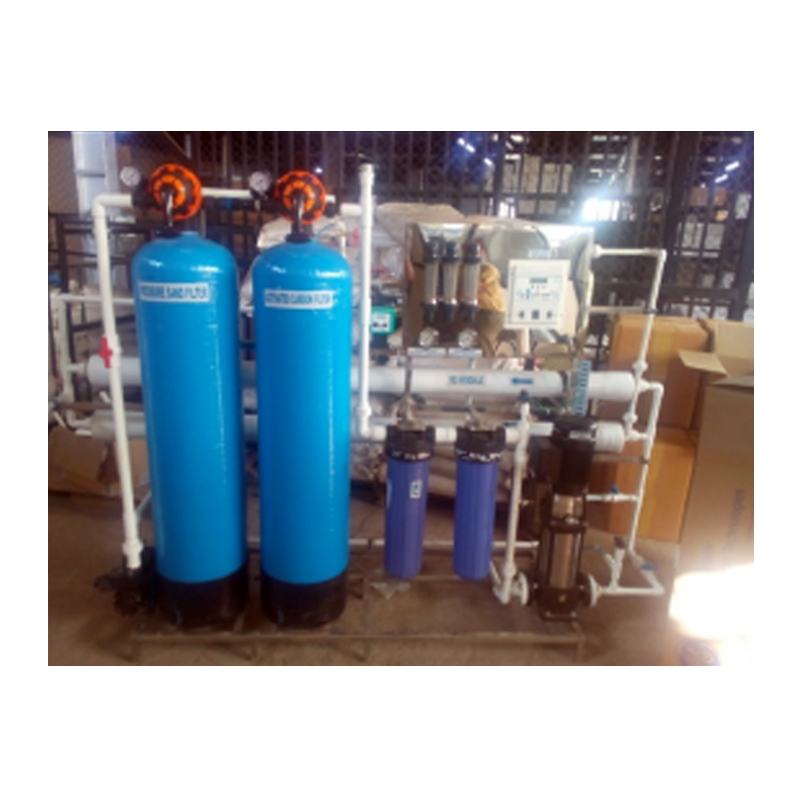

Ultrafiltration (UF) and Reverse Osmosis (RO) plants are advanced water purification systems used to remove contaminants and impurities. UF removes suspended particles, bacteria, and some viruses using a membrane with fine pores. RO goes further by using a semi-permeable membrane to remove dissolved salts, heavy metals, and chemicals. Together, these systems provide high-quality water for drinking, industrial, and medical use.
Media Filters
Softeners
Reverse Osmosis (RO's)
Softeners

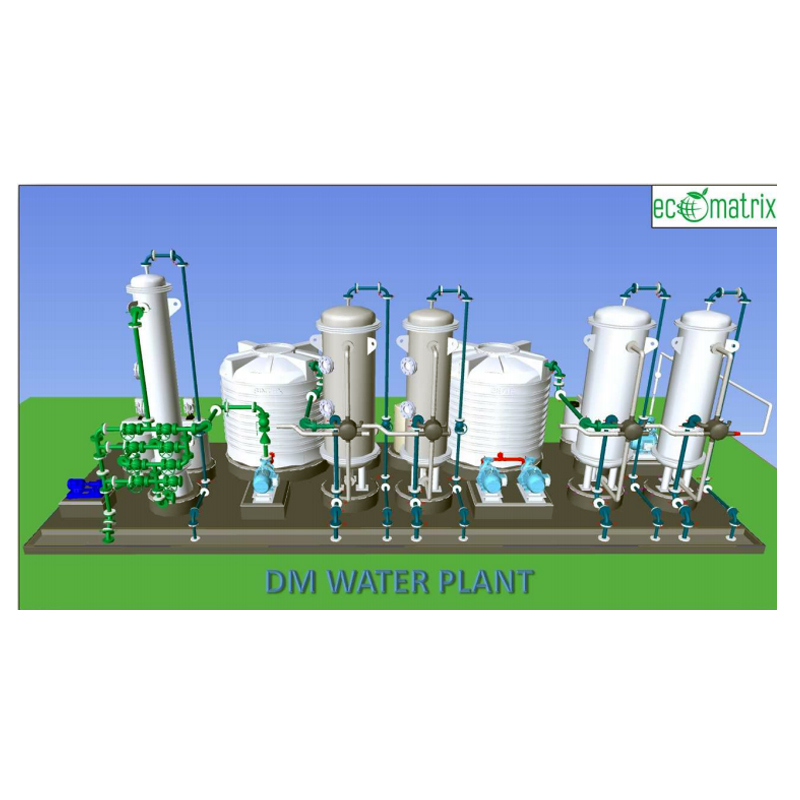

DM Water Plant

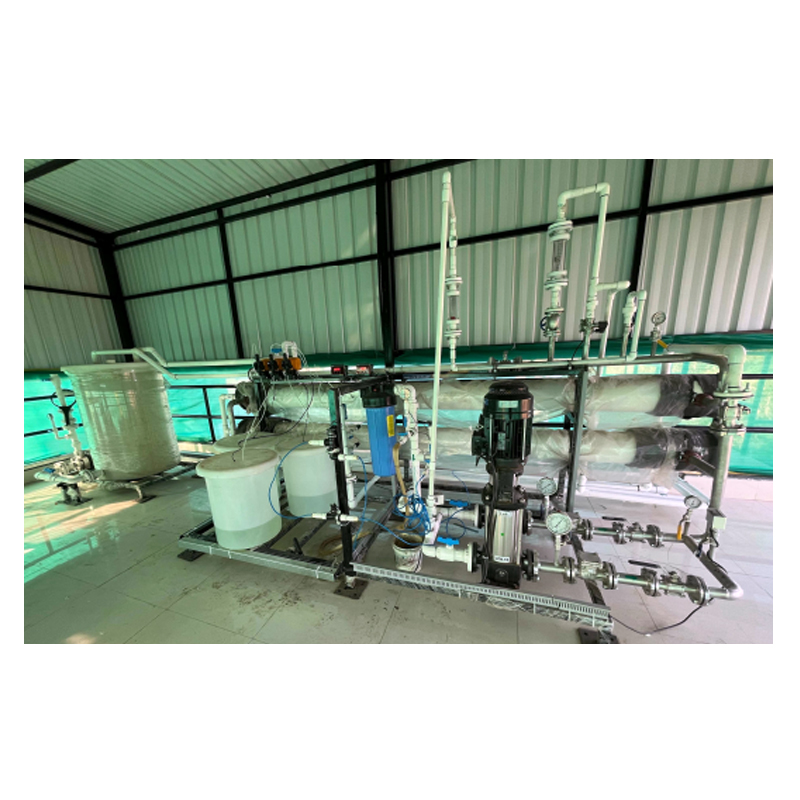

RO Plant
